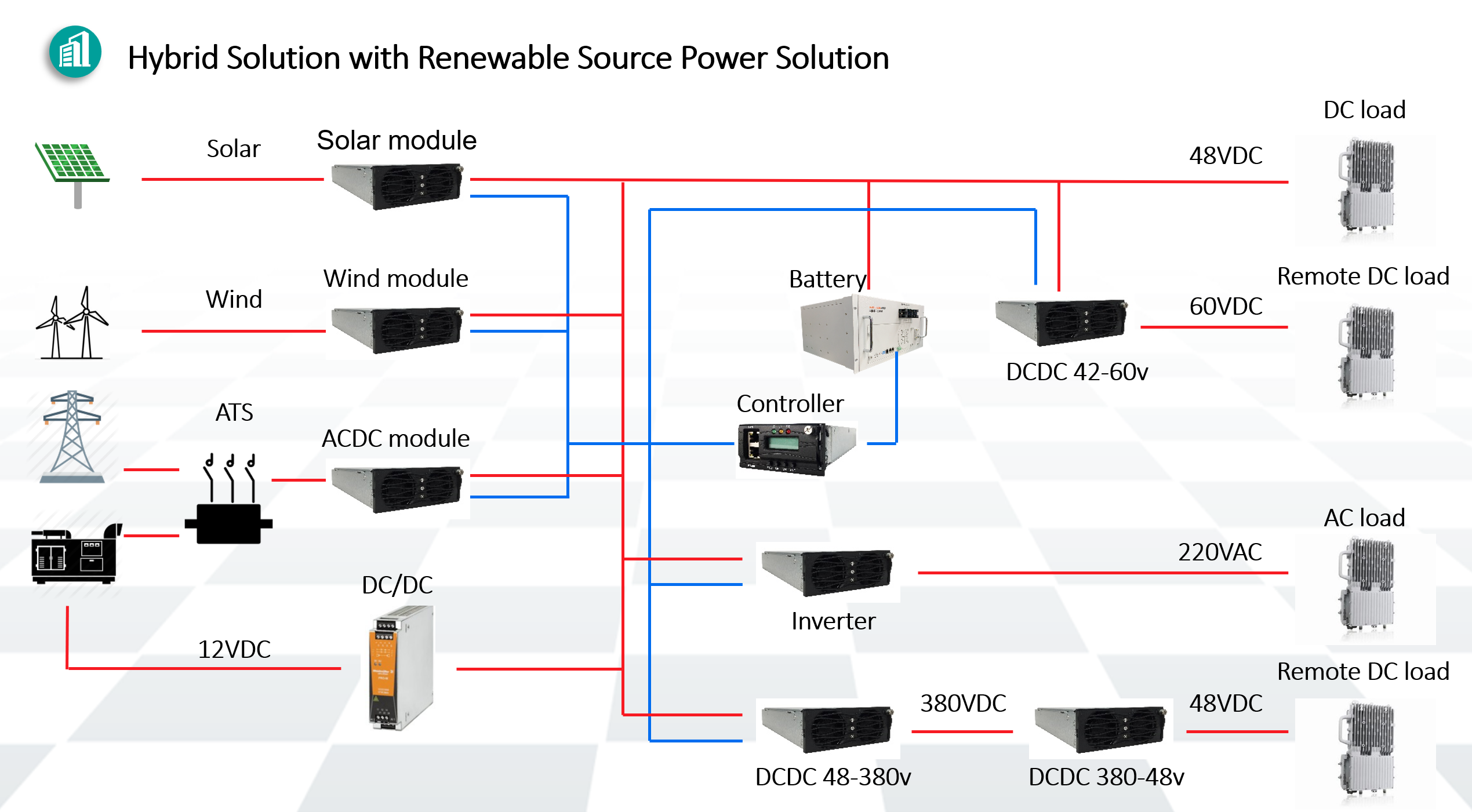

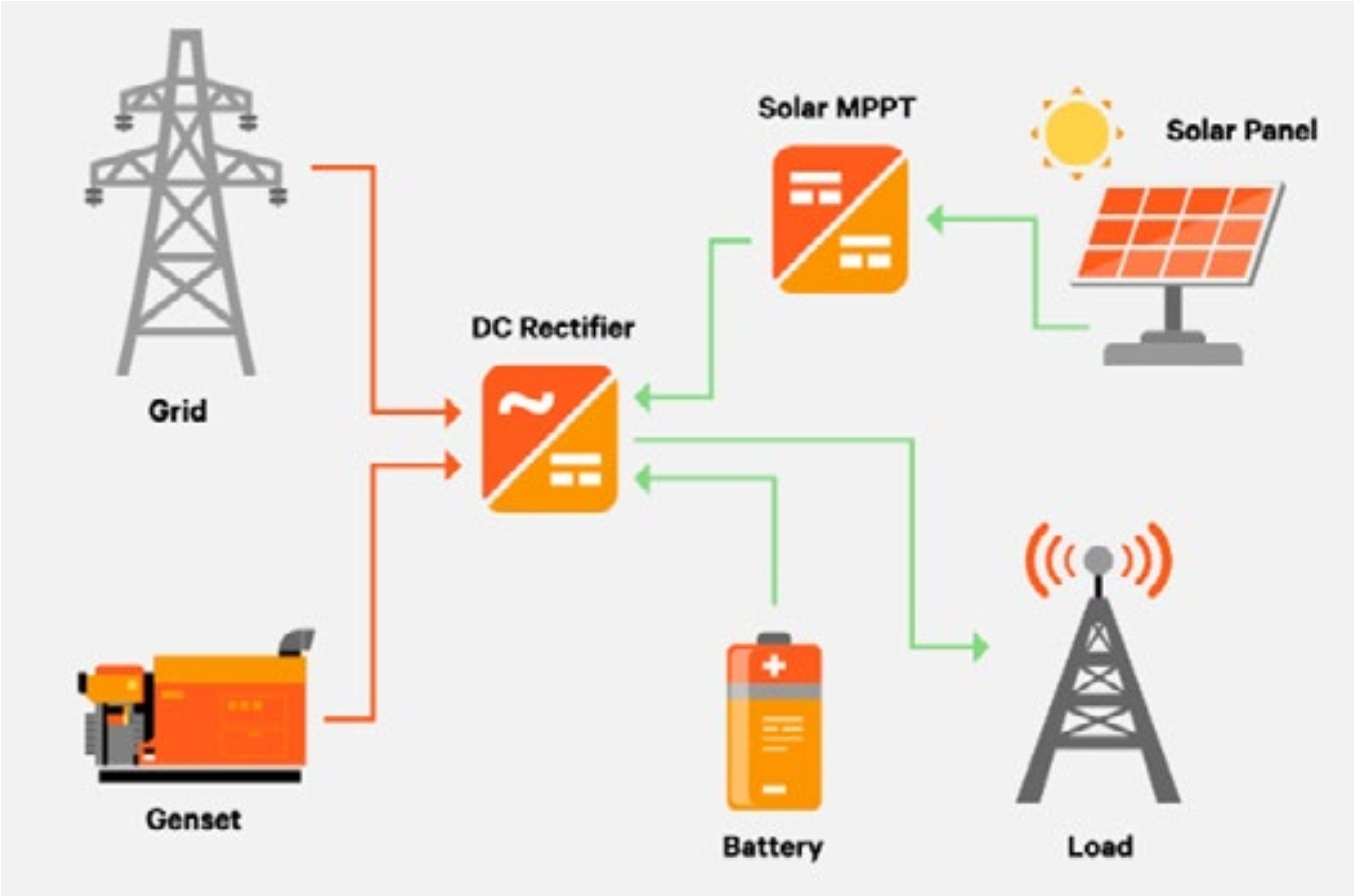

Poor Grid Hybrid Solar Solutions

• Multiple energy sources

• Efficient supplement for poor AC areas, improve power system reliability.

• Solar mainly to support the load during the day, generator to support when grid is not available at the rest of the day

• Batteries supporting stressed cyclic demand and fast recharge

• Genset management, start the genset automatically based on the remaining capacity of the battery or a fixed daily working schedule

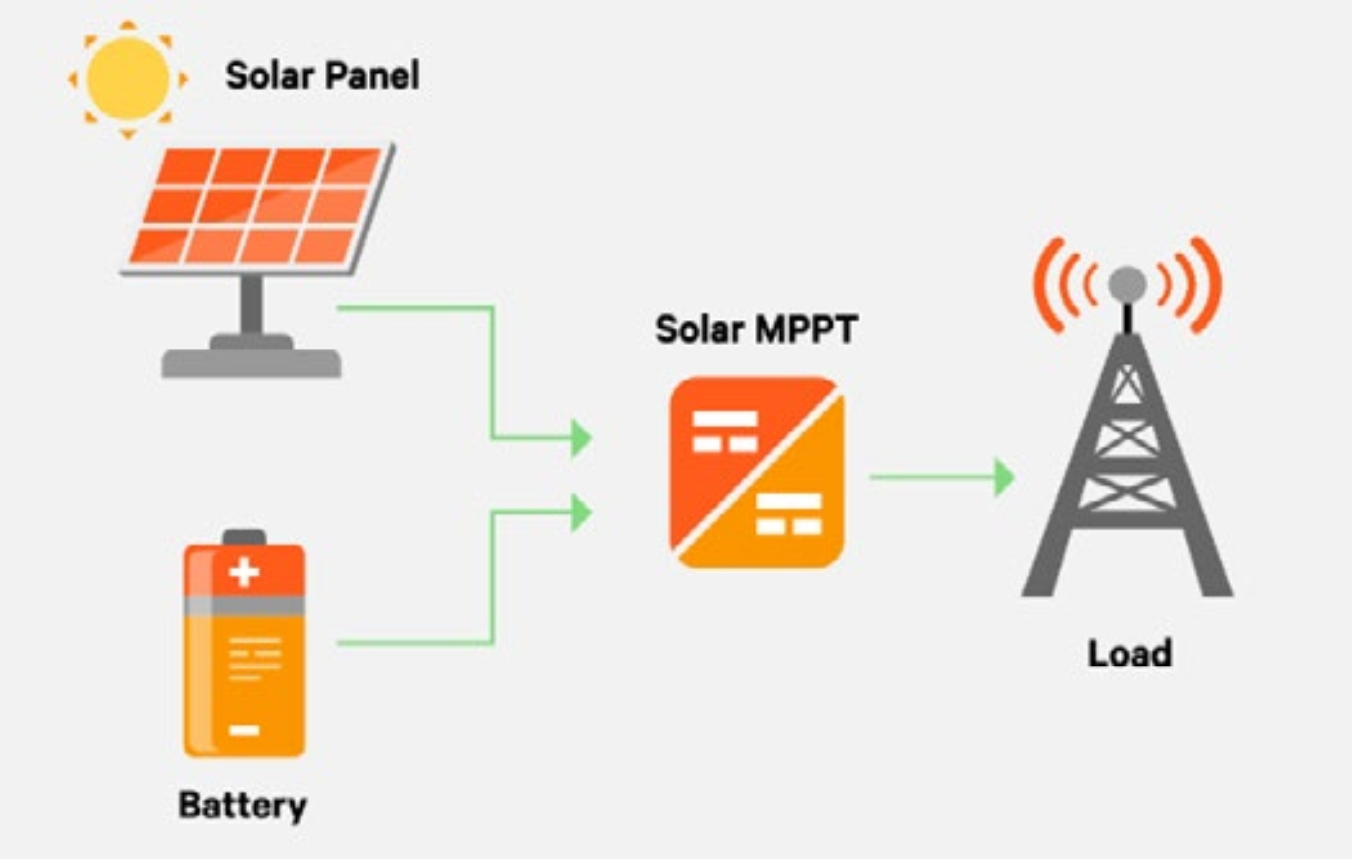

Off Grid Pure Solar Solutions

• Suitable for rich solar resources area

• 100% Energsaving

• Environment friendland no CO2 discharge

• Increase network coverage especiallat remote area

• Easto install, less maintenance, lower operating cost

• Improve power supplreliabilitand optimal safety

• Suitable for low power consumption application (<1kW)

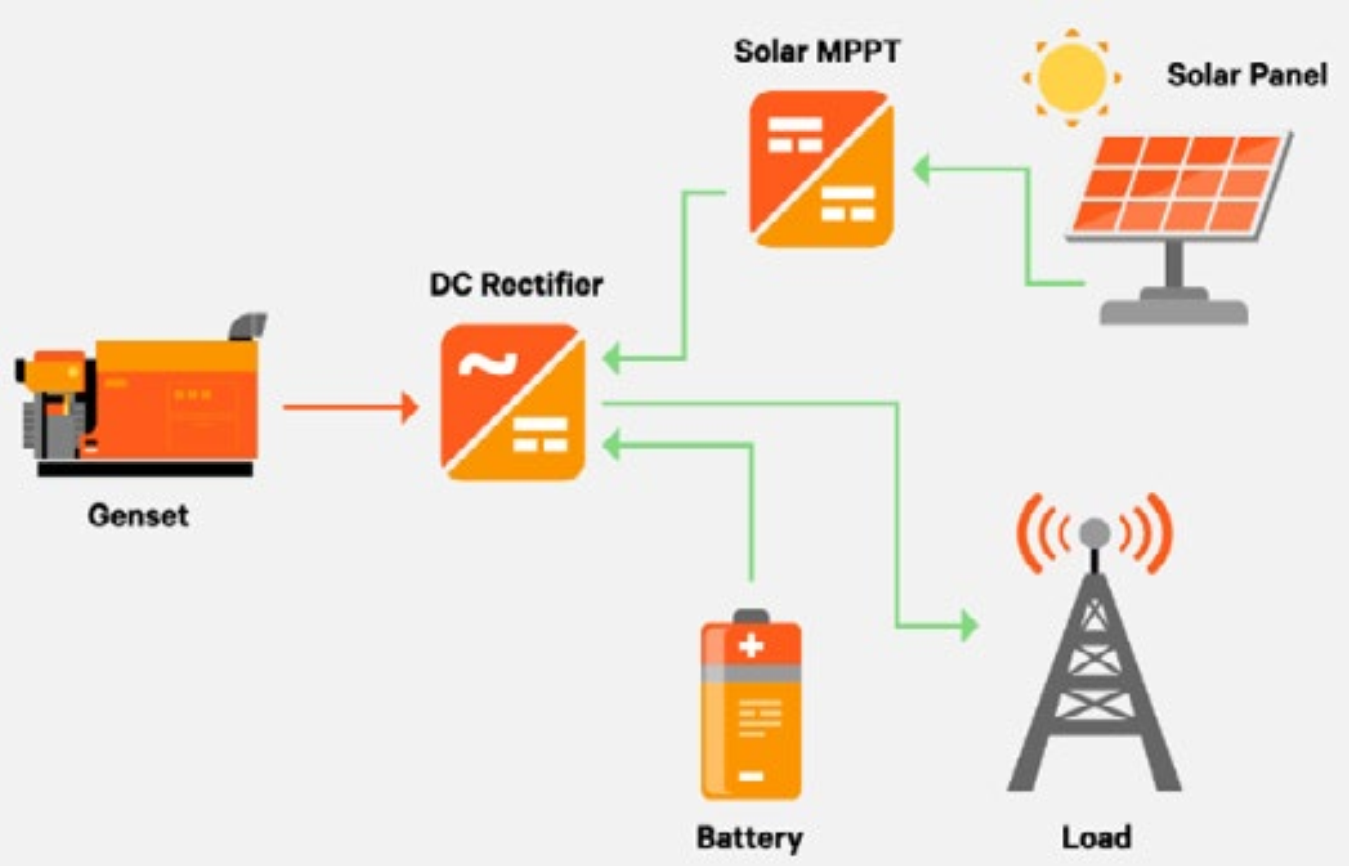

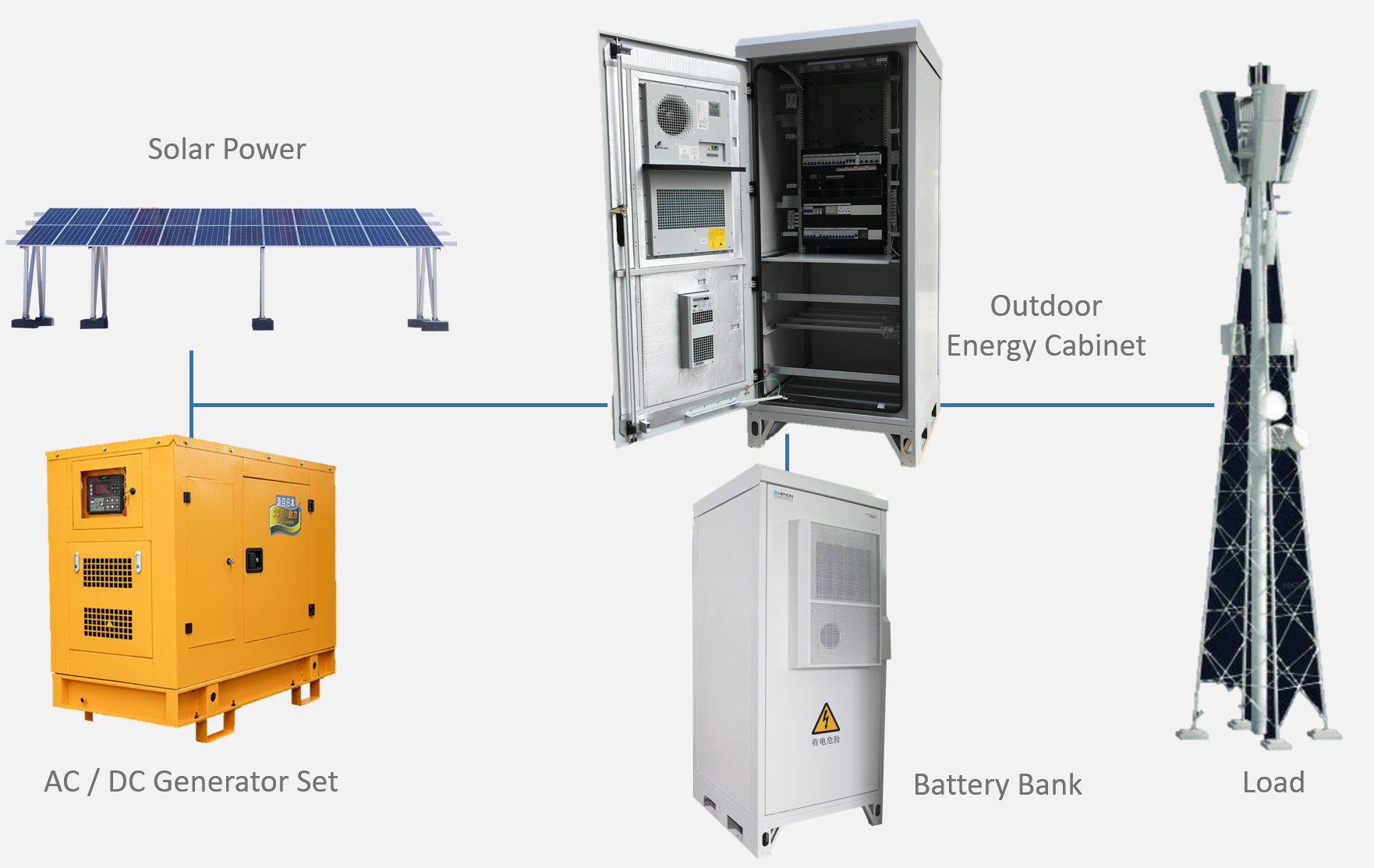

Off Grid Hybrid Solar Solutions

• Solar option to reduce generator running time and maintenance visits, reduce Genset OPEX

• Energbpriority: Solar -> Batter-> Generator

• Typically, Genset can reduced to run at around 3 to 4 hours daily as compared to normal CDC that runs for 12hrs daily

• DC Power controller starts/stop Genset automatically (time based or battercapacitbased)

Poor Grid Hybrid Solar Solutions

• Multiple energsources

• Efficient supplement for poor AC areas, improve power system reliability.

• Solar mainlto support the load during the day, generator to support when grid is not available at the rest of the day

• Batteries supporting stressed cyclic demand and fast recharge

• Genset management, start the genset automaticallbased on the remaining capacitof the batteror a fixed daily working schedule.
